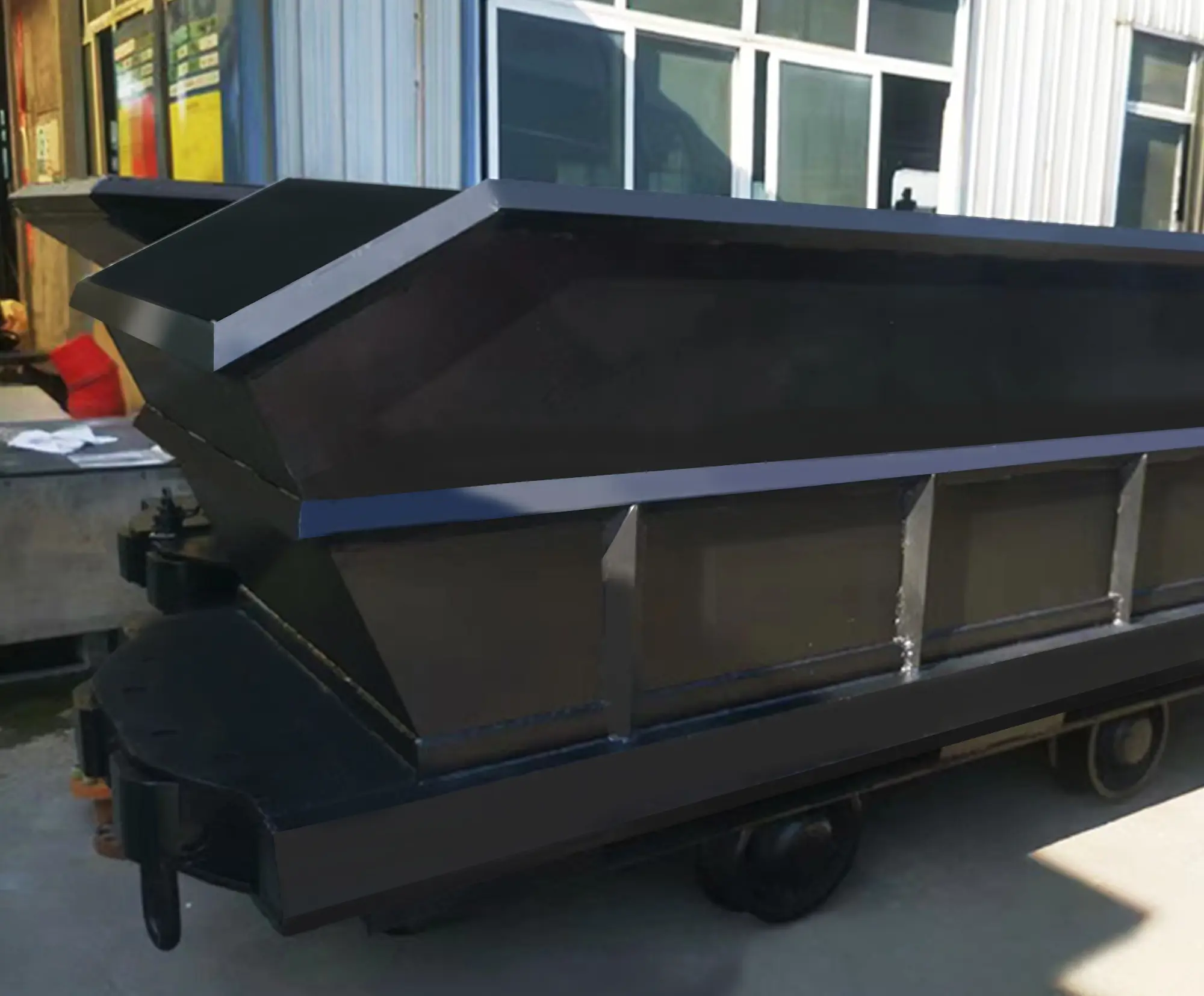

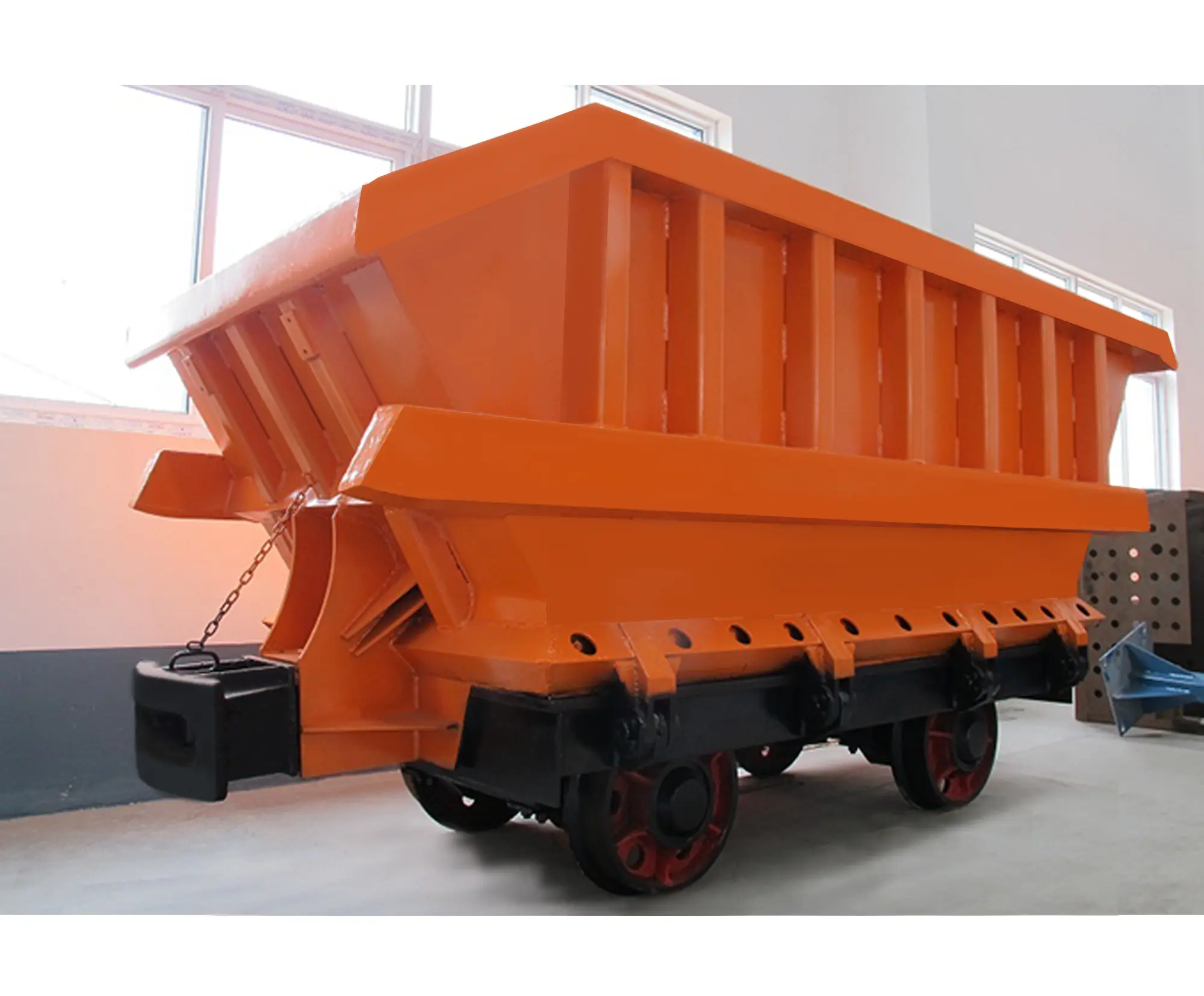

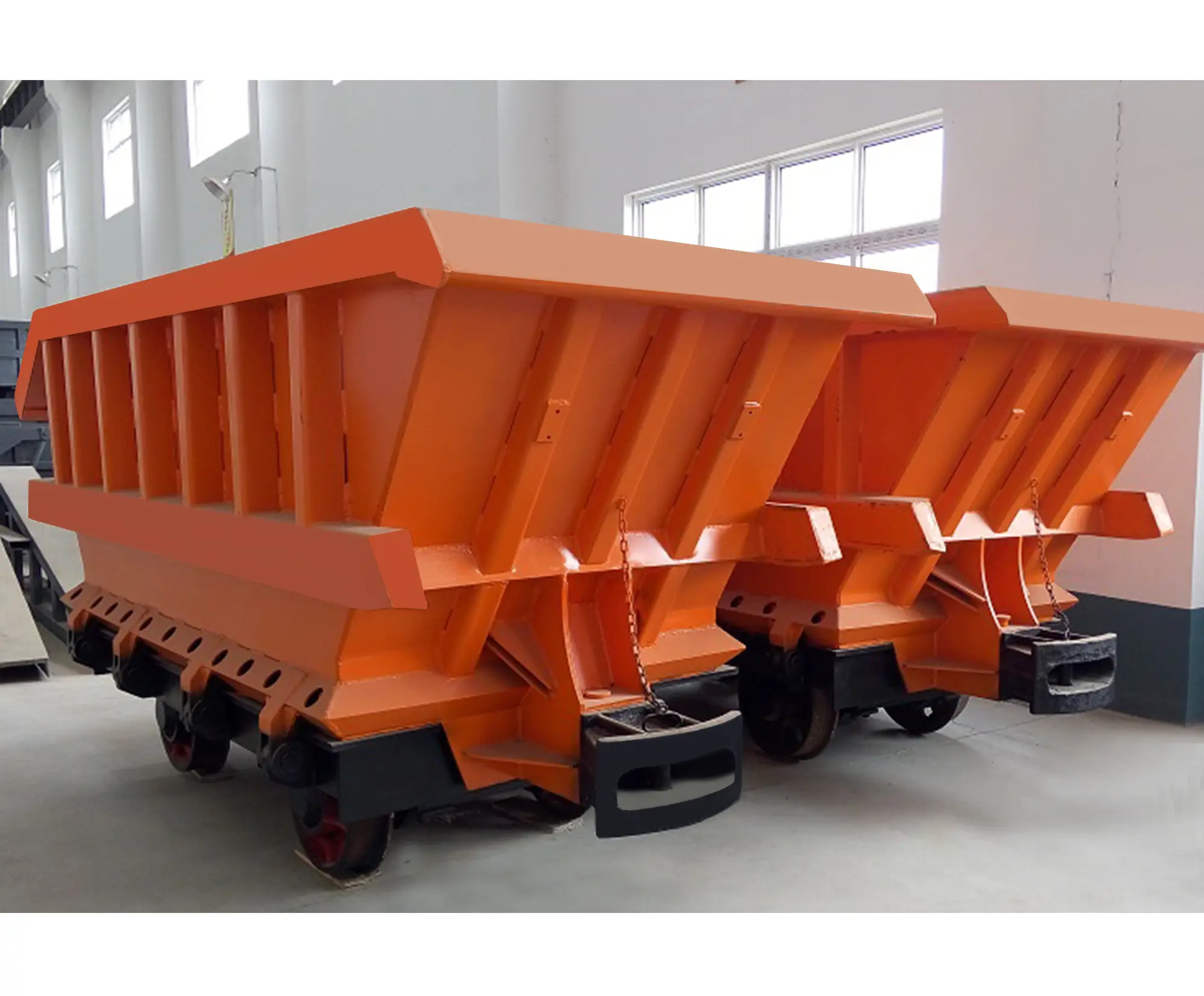

| drop-bottom mine car Technical Parameters | ||||||||||||||
| model | Volume（m³） | Loading capacity | gaugeG(mm） | Dimensions | Wheelbase C | Wheel diameter D | Connector type | Unloading angle | Traction high | Traction | Minimum turning radius | Deadweight（kg） | ||
| length | Width | high | ||||||||||||
| YDCC4-6 | 4 | 10 | 600 | 3657 | 1450 | 1700 | 1300 | 450 | Automatic hook | ≥50 | 450 | 60 | 20 | 3500 |
| YDCC4-7 | 4 | 10 | 762 | 3657 | 1450 | 1700 | 1300 | 450 | Automatic hook | ≥50 | 450 | 60 | 20 | 3680 |
| YDCC4-9 | 4 | 10 | 900 | 3657 | 1450 | 1700 | 1300 | 450 | Automatic hook | ≥50 | 450 | 60 | 20 | 3860 |
| YDCC6-7 | 6 | 15 | 762 | 5400 | 1845 | 1690 | 2200（800） | 450 | Automatic hook | ≥50 | 520 | 60 | 20 | 6800 |
| YDCC6-9 | 6 | 15 | 900 | 5400 | 1845 | 1690 | 2200（800） | 450 | Automatic hook | ≥50 | 520 | 60 | 20 | 6900 |
| YDCC10-7 | 10 | 25 | 762 | 5770 | 2057 | 2066 | 2200（900） | 450 | Automatic hook | ≥50 | 780 | 60 | 20 | 1158 |
| YDCC10-9 | 10 | 25 | 900 | 5770 | 2057 | 2066 | 2200（900） | 450 | Automatic hook | ≥50 | 780 | 60 | 20 | 1158 |
