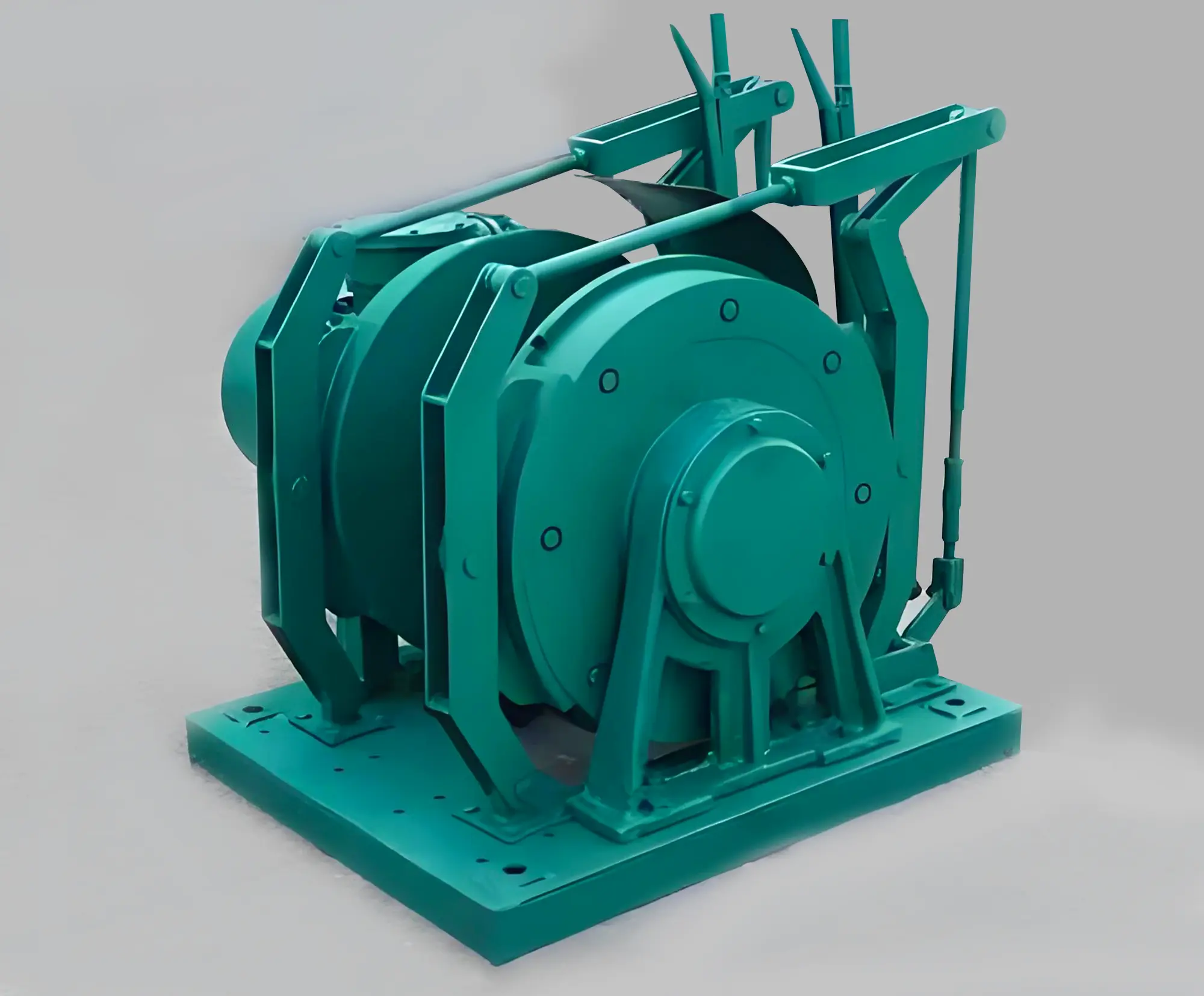

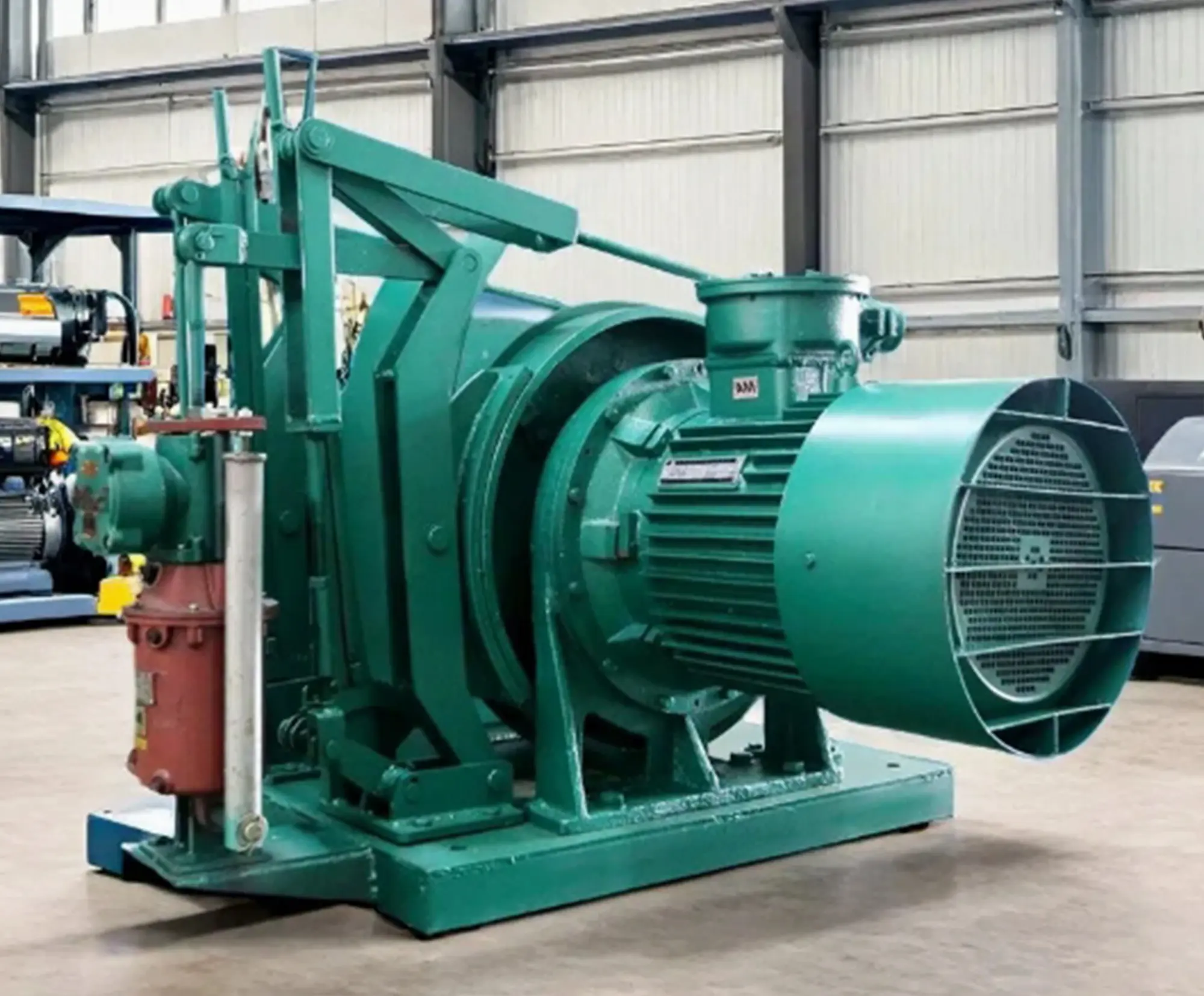

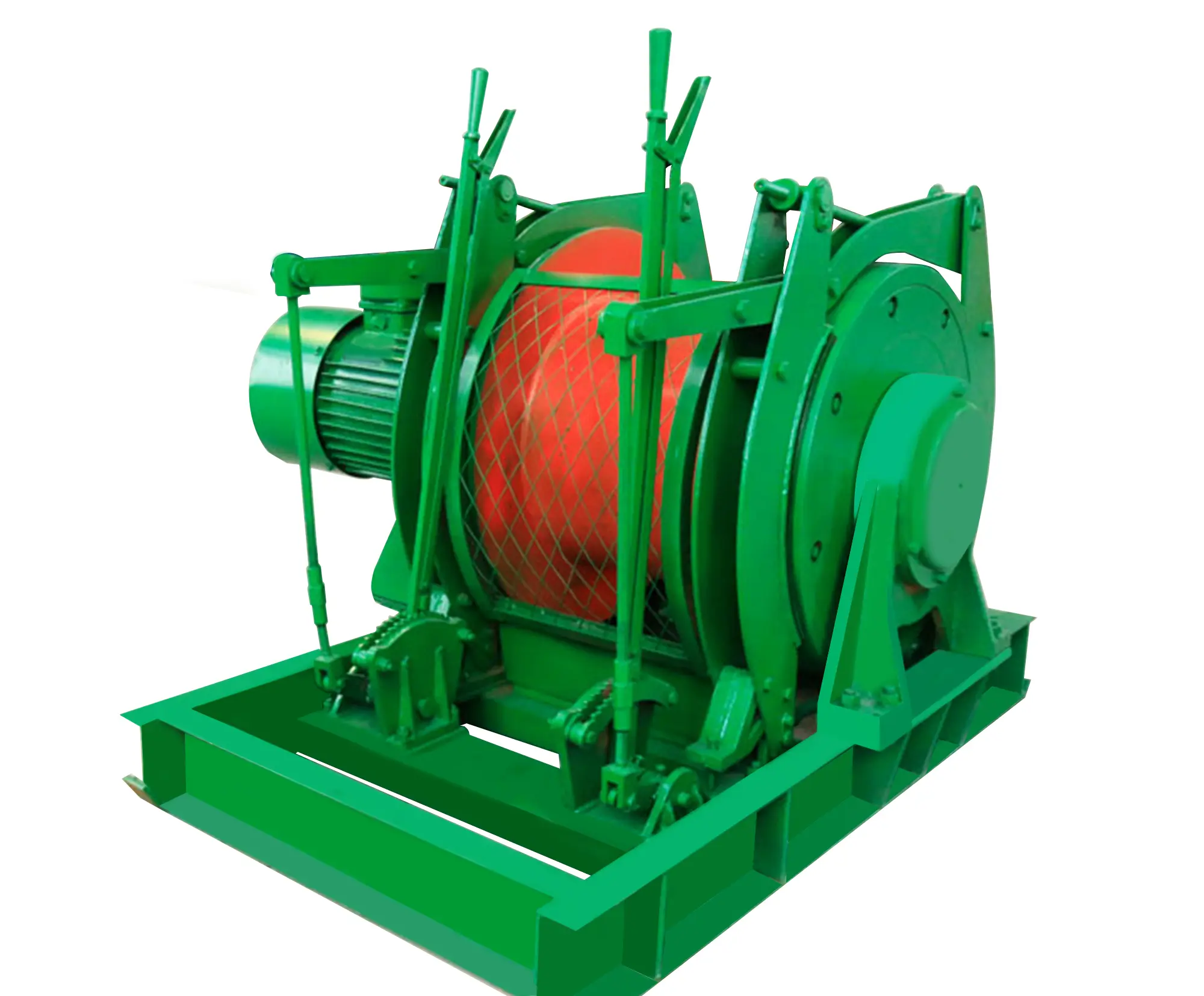

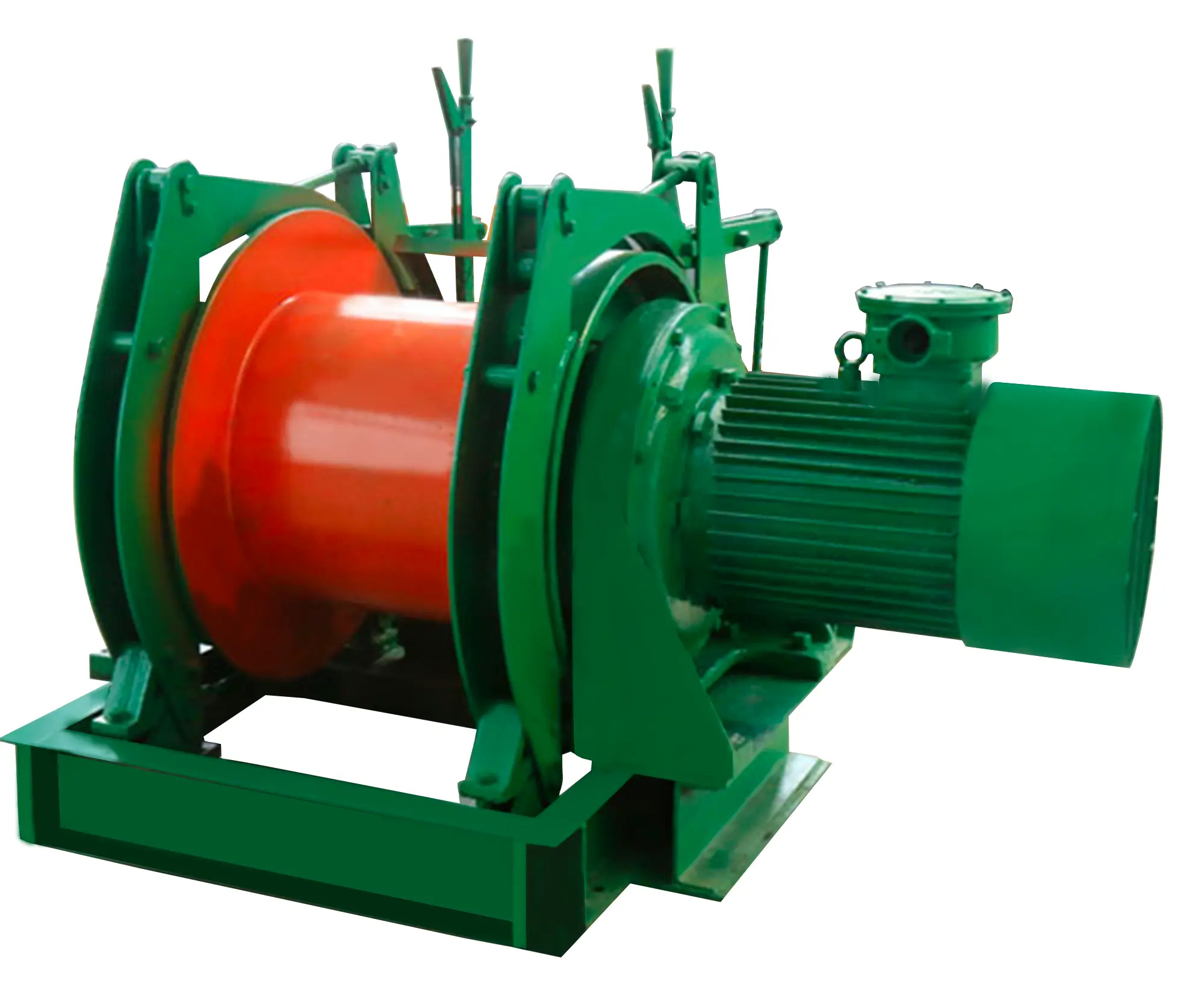

| Scheduling winch Technical Parameters | |||||||
| Model | JD-0.5 | JD-1 | JD-1.6/1.6A | JD-2 | JD-2.5/2.5A | JD-3 | JD-4 |
| Traction(kN) | 5 | 10 | 16 | 20 | 25 | 300 | 400 |
| Rope speed(m/s) | 0.7 | 1 | 1.2 | 1.2 | 1.25 | 1.25 | 1.25 |
| Rope diameter (mm) | 9 | 12 | 16 | 16 | 20 | 20 | 22 |
| Rope capacity(m) | 150 | 400 | 400 | 400 | 400-650 | 400-650 | 850 |
| Electric power(kw) | 3 | 11.4 | 25 | 30 | 40 | 45 | 55 |
| Dimensions(mm) | 910*540*450 | 1100*765*730 | 1425*1190*1190 | 1350*1190*1190 | 1900*2350*1370 | 1900*2350*1370 | 2500*1965*1425 |
| Machine weight (kg) | 230 | 550 | 1460 | 1500 | 2800 | 2800 | 2800 |
