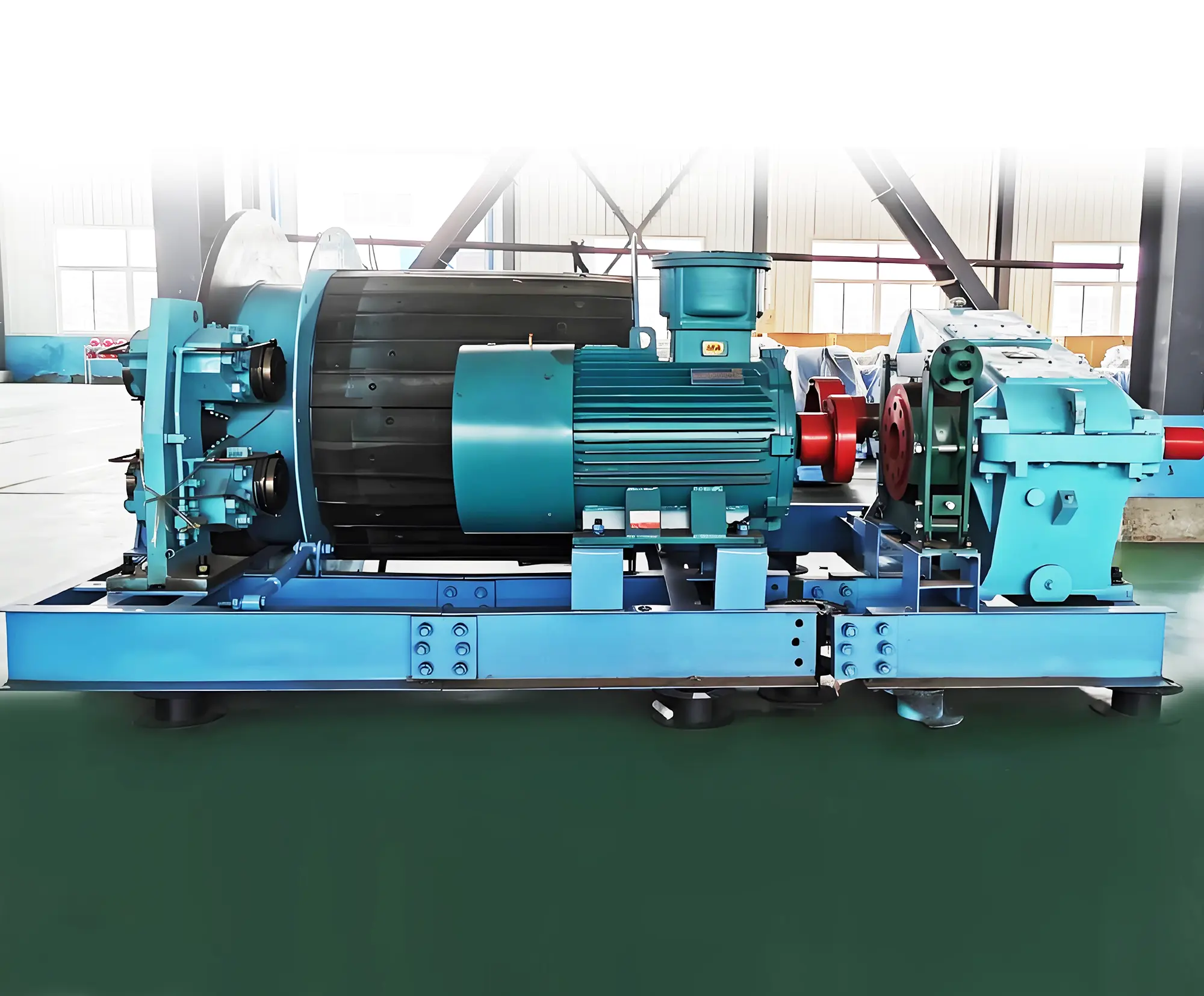

The electric motor transmits power to the drum around which the steel wire rope is wound through the reducer, realizing the lifting and lowering of the container. Speed regulation is achieved through electrical control. The disc brake is controlled by hydraulic and electrical systems for braking. The depth indication of the lifting container is realized through various position indication systems.

Send Message
FacebookTwitterLinkedInPinterestShare

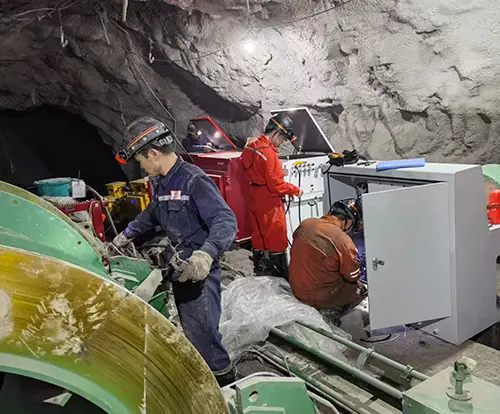

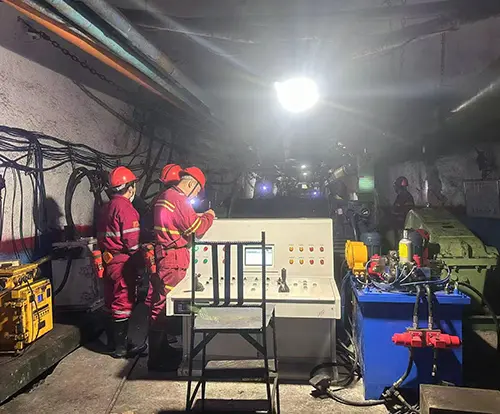

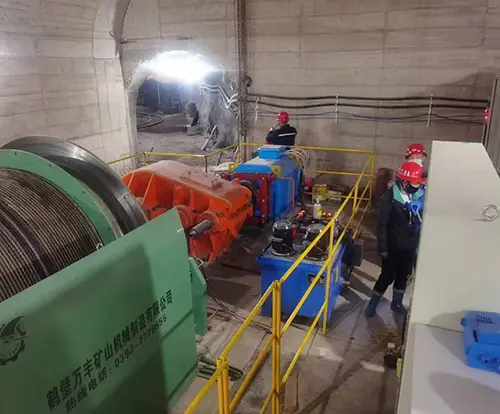

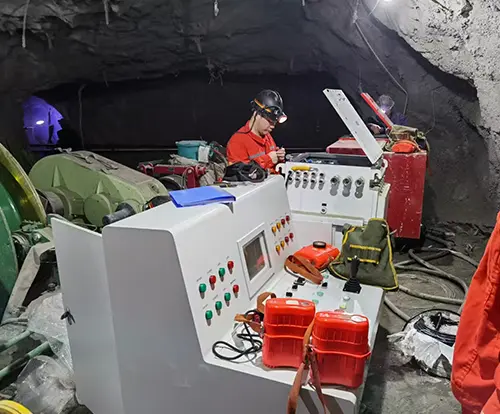

Product Introduction

The electric motor transmits power to the drum around which the steel wire rope is wound through the reducer, realizing the lifting and lowering of the container. Speed regulation is achieved through electrical control. The disc brake is controlled by hydraulic and electrical systems for braking. The depth indication of the lifting container is realized through various position indication systems. The monitoring and protection of the whole machine are achieved through the mechanical, electrical and hydraulic combined control system composed of various sensors and control elements. Information transmission inside and outside the hoist is realized through computer and network technology.

Product Use and Scope of Application

The JK and 2JK series of single-rope winding mine hoists are mainly used for hoisting coal, materials, lifting and lowering personnel, and lowering materials and equipment in vertical or inclined shafts of coal mines, metal mines and non-metal mines. They can also be used for other traction and transportation purposes.

Product Execution Standards

The JK and 2JK series of products are designed and manufactured in accordance with the industry standard AQ1035 - 2007 Safety Inspection Specification for Single-rope Winding Mine Hoists Used in Coal Mines, the national standard GB/T20961 - 2018 Single-rope Winding Mine Hoists, Q/YX006 - 2020 Single-rope Winding Mine Hoists, the Coal Mine Safety Regulations and GB16423 - 2020 Safety Regulations for Metal and Non-metal Mines.

Product Model Examples

Example 1: The product model of a single-drum single-rope winding mine hoist with a drum diameter of 3m, a width of 2.2m and non-flameproof resistance speed regulation is: JK - 3*2.2.

Example 2: The product model of a double-drum single-rope winding mine hoist with a drum diameter of 2m, a width of 1m and flameproof frequency conversion speed regulation is: 2JKB - 2*1P.

JTP/JTPB/2JTP/2JTPB Type Mining Winch Parameters
Model Reel The maxmumstatic tension ofthe wire rope Largest static
tension difference of wire rope		 Maximum lifting height orlength of transport Wire rope Reduction ratio Average hoistingspeed Motor Dimensiong Length×width×height Theoretical Weight of host
Individual Diameter Width Two drum
central
distance		 Manned Load Manned Load one layer
of
winding		 two layer
of
winding		 three layer
of
winding		 Largest
 diameter		 Sum of breaking pull force Rotating speed Maximum power
Unit  mm kn mm mm kn m/s r/min kw mm kg
JTP-1*0.8P 1 1000 800 / 15 / 179 360 543 12 97.5 31.5 1.6 985 37 3800*2380*1350 3430
JTP-1.2*1P 1 1200 1200 / 30 30 169 341 516 20 279 31.5 1.9 985 75 4458*2680*1450 9627
JTP-1.2*1.2P 1 1200 1200 / 15 21 / 205 413 625 20 279 31.5 1.9 967 55 4949*2680*2600 9711.2
JTP-1.6*1.2P 1 1600 1200 / 45 45 215 433 655 26 405 31.5 2.6 988 132 5224*2800*1925 14037
JTP-1.6*1.5P 1 1600 1500 / 45 / 269 542 819 26 405 31.5 2.5 975 110 5780*2800*1950 14200
JTPB-1.2*1P 1 1200 1000 / 30 30 169 341 516 20 279 31.5 1.9 967 75 4658*2680*1450 9940
JTPB-1.2*1.2P 1 1200 1200 / 30 30 205 413 625 20 279 31.5 1.9 967 75 4658*2680*1450 10421
JTPB-1.6*1.2P 1 1600 1200 / 45 45 215 433 655 26 405 31.5 2.6 975 132 5524*2800*1925 15195
JTPB-1.6*1.5P 1 1600 1500 / 45 45 269 542 819 26 405 31.5 2.6 975 132 5524*2800*1925 15678
2JTP-1.2*0.8P 2 1200 800 874 30 20 137 275 415 20 279 31.5 1.9 987 55 5136*2680*1450 10386
2JTP-1.2*1P 2 1200 1000 1070 15 21 15 21 169 341 516 20 279 31.5 1.9 967 55 5757*2680*1450 10027.2
2JTP-1.6*0.9P 2 1600 900 974 45 30 161 324 490 26 405 31.5 2.5 972 110 5905*2800*1925 16606.7
2JTP-1.6*1.2P 2 1600 1200 1270 45 30 215 433 655 26 405 31.5 2.5 975 110 6768*2800*1950 15330
2JTPB-1.2*0.8P 2 1600 800 874 30 20 137 275 415 20 279 31.5 1.9 967 55 5136*2680*1450 11520
2JTPB-1.6*0.9P 2 1600 900 947 45 30 161 324 490 26 405 31.5 2.6 988 110 5905*2800*1925 14200
