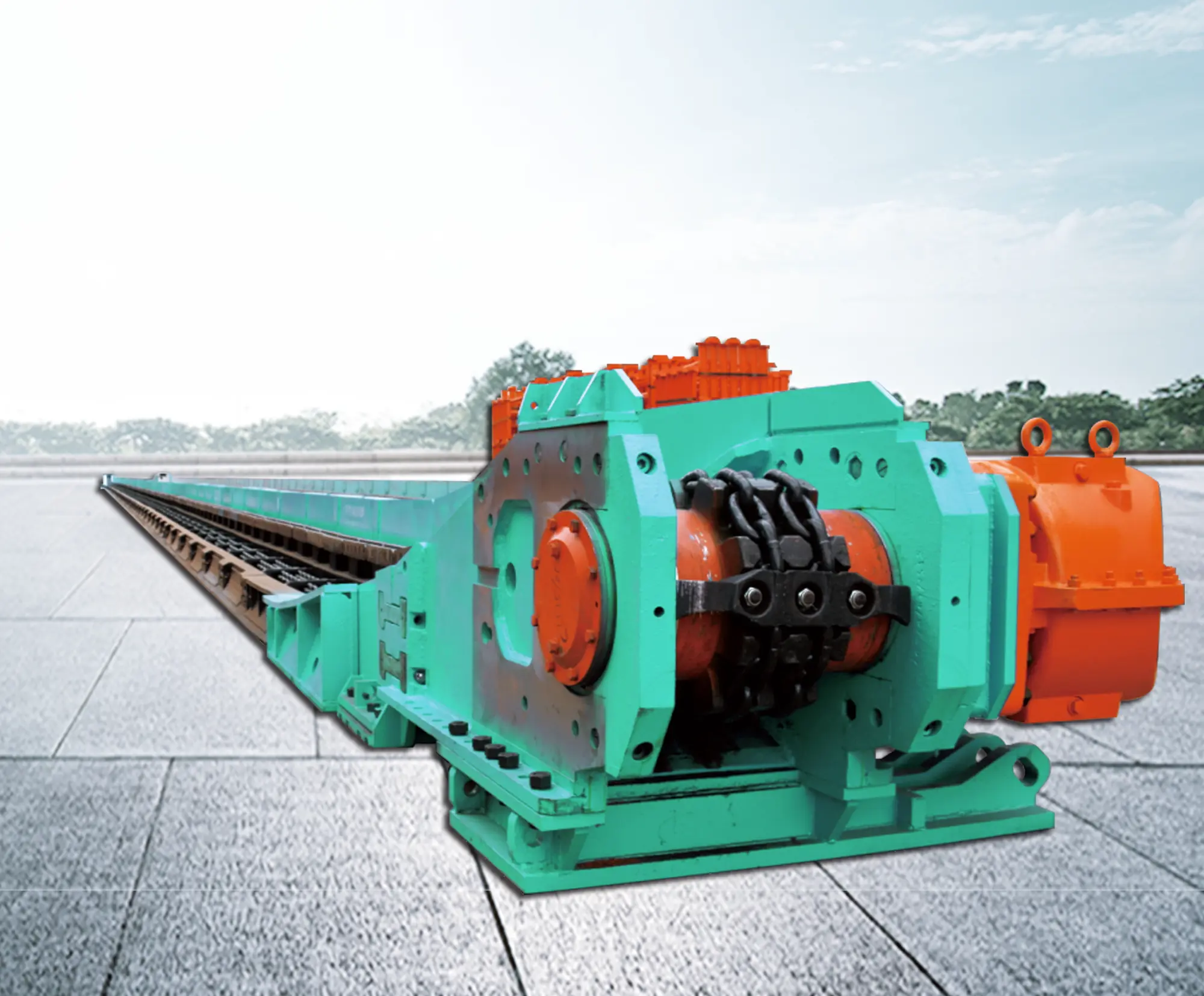

| Scraper conveyor Technical Parameters | ||||||
| model | Design length（m） | Transport capacity（t/h） | Chain speed（m/s） | Motor power（kw） | Round link chain specifications | Middle slot specifications |
| SGB630/150C | 200 | 250 | 0.86 | 2×75 | 18×64-C | 1500×630×190 |
| SGB630/180 | 150 | 400 | 0.92 | 2×90 | 22×86-C | 1500×630×222 |
| SGB630/180 | 150 | 400 | 0.92 | 2×90 | 26×92-C | 1500×630×222 |
| SGB630/220 | 150 | 400 | 1.07 | 2×110 | 26×92-C | 1500×630×222 |
| SGB630/220 | 150 | 450 | 1 | 2×110 | 22×86-C | 1500×630×222 |
| SGZ630/220 | 150 | 450 | 1 | 2×110 | 22×86-C | 1500×630×222 |
| SGZ630/264 | 200 | 450 | 0.95 | 2×132 | 22×86-C | 1500×630×222 |
| SGZ730/220 | 180 | 500 | 1 | 2×110 | 22×86-C | 1500×630×222 |
| SGZ730/264 | 200 | 500 | 1.12 | 2×132 | 22×86-C | 1500×630×222 |
| SGZ730/320 | 200 | 700 | 0.95 | 2×160 | 26×92-C | 1500×730×275(Casting welding） |
| SGB764/264 | 150 | 600 | 1.12 | 2×132 | 22×86-C | 1500×764×222 |
| SGZ764/264 | 150 | 600 | 0.95 | 2×132 | 26×92-C | 1500×764×222 |
| SGZ764/320D | 200 | 700 | 0.95 | 2×160 | 26×92-C | 1500×764×300 |
